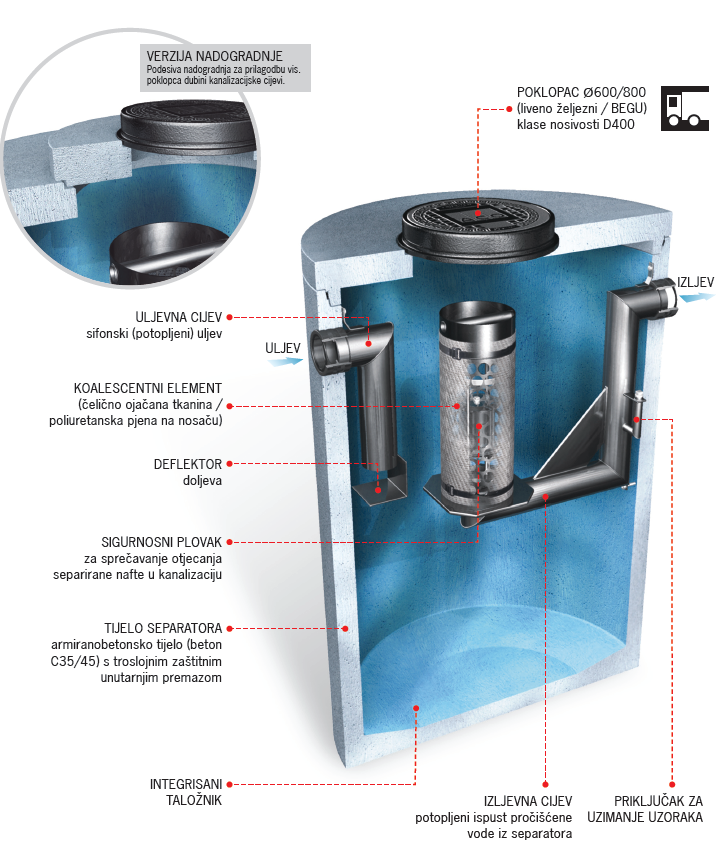

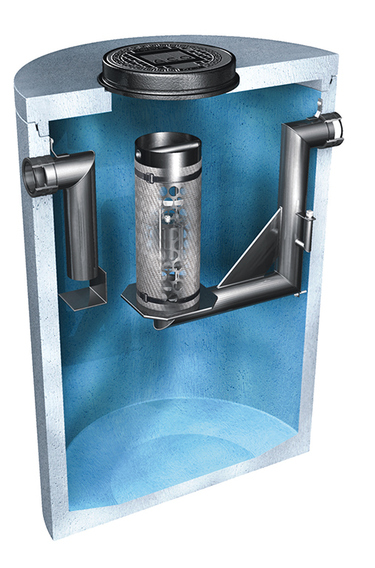

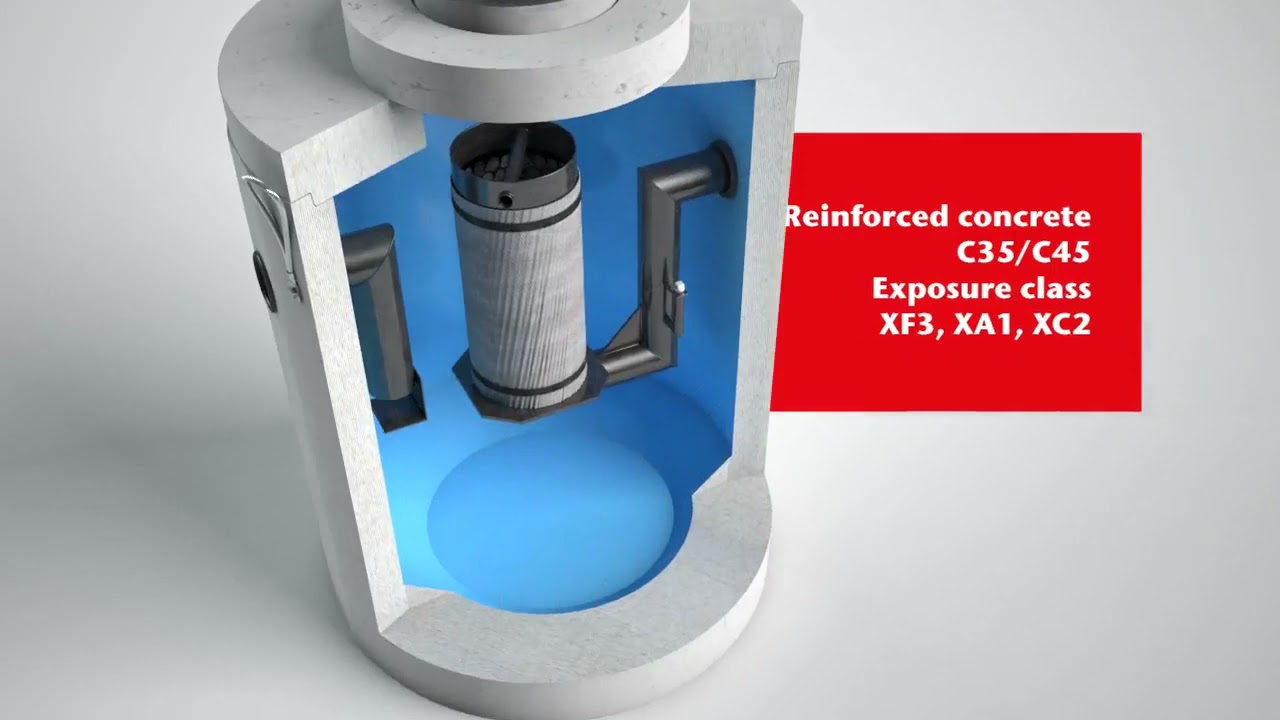

ACO Oleopator C je koalescentni separator lakih naftnih derivata za ugradnju u zemlju od armiranog betona sa integrisanim taložnikom.
ACO Oleopator C-FST
Područje primene:
- spoljna parkirališta
- saobraćajnice (putevi i autoputevi)
- benzinske stanice
- automatske autoperionice
- ručne autoperionice za lična ili vozila preduzeća
- autoservisi
- skladišta i proizvodni pogoni
- autootpadi i sl.

Potvrđena efikasnost prečišćavanja prema EN 858-1 za klasu I (koalescentne separatore) - mineralnih ulja u prečišćenoj vodi manje od 5mg/l.
Dokazano laboratorijskim ispitivanjem pri akreditovanom LGA institutu (Landesgewerbeanstalt Bayern) iz Nürnberga.

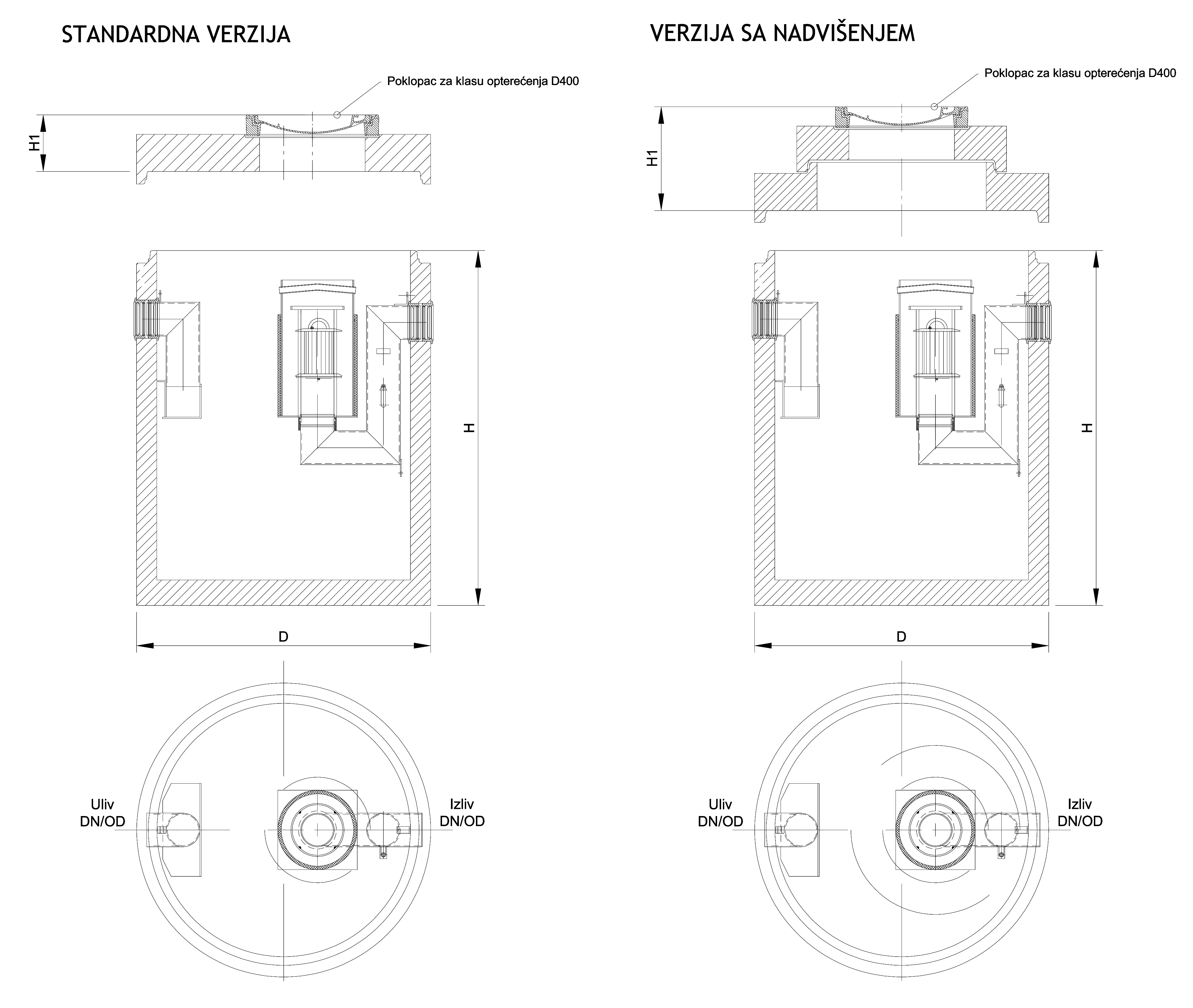

Tabela 1 - protoci separatora
Protok NS | Uliv/Izliv DN/OD (mm) | Korisna zapremina taložnika (l) | Max izdvojenog ulja (l) | Ukupna zapremina (l) | Ukupna masa (kg) | Art.br. premazan | Art.br. nepremazan |
---|---|---|---|---|---|---|---|
NS3 | 100 | 300 | 163 | 620 | 1596 | 626368 | 626328 |
NS3 | 100 | 600 | 163 | 850 | 1807 | 626369 | 626329 |
NS6 | 150 | 600 | 160 | 970 | 2078 | 626370 | 626330 |
NS6 | 150 | 1200 | 232 | 1530 | 2485 | 626371 | 626331 |
NS10 | 150 | 1000 | 273 | 1530 | 2485 | 626372 | 626332 |
NS10 | 150 | 2000 | 576 | 2740 | 3456 | 626373 | 626333 |
NS15 | 200 | 1500 | 464 | 2530 | 3464 | 626374 | 626334 |
NS20 | 200 | 2000 | 594 | 3200 | 3933 | 626375 | 626335 |
NS30 | 250 | 3000 | 1662 | 5990 | 5630 | 626376 | 626336 |
NS40 | 300 | 4000 | 1485 | 7640 | 6707 | 626377 | 626337 |
NS50 | 300 | 5000 | 1485 | 8660 | 6982 | 626378 | 626338 |

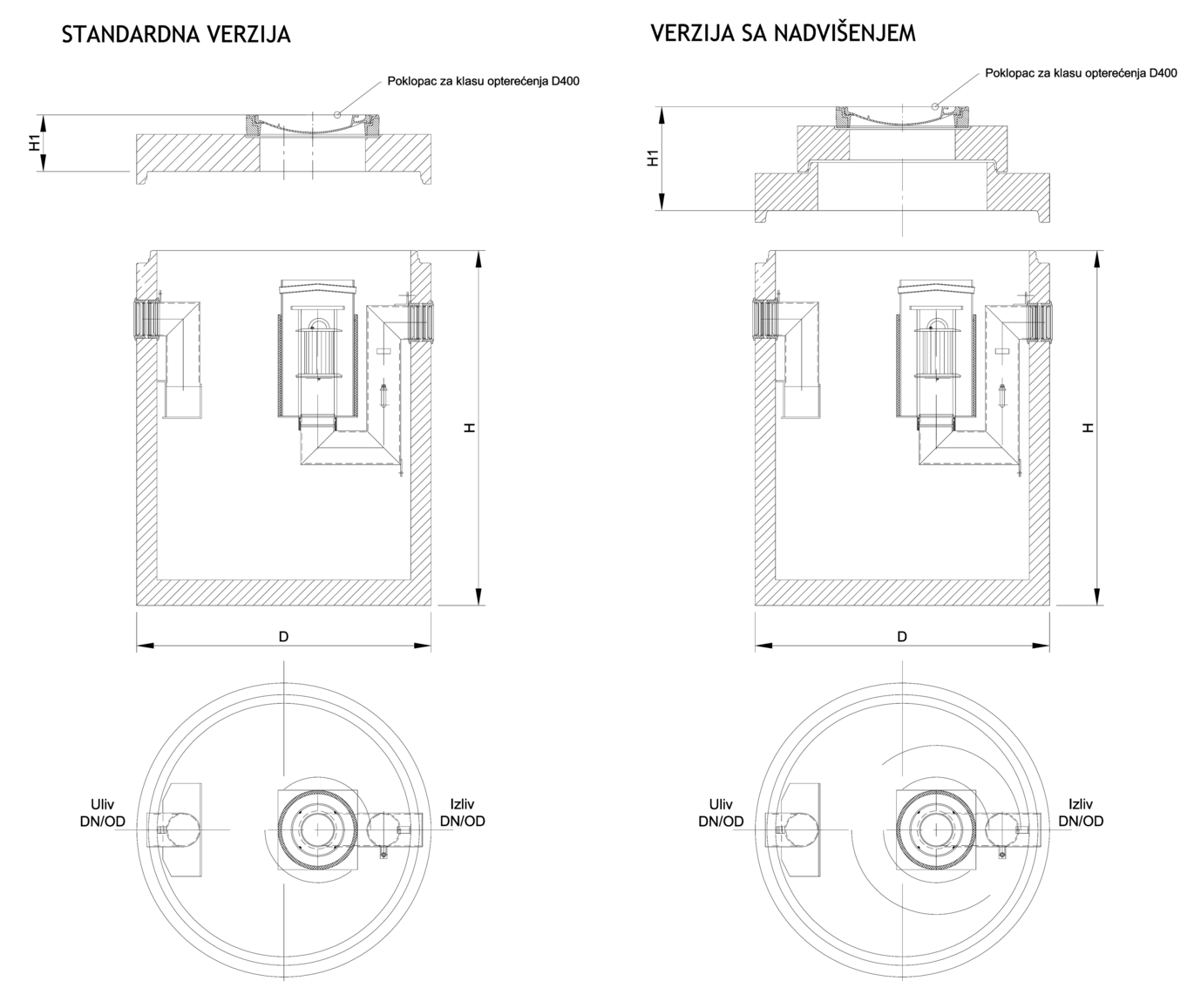

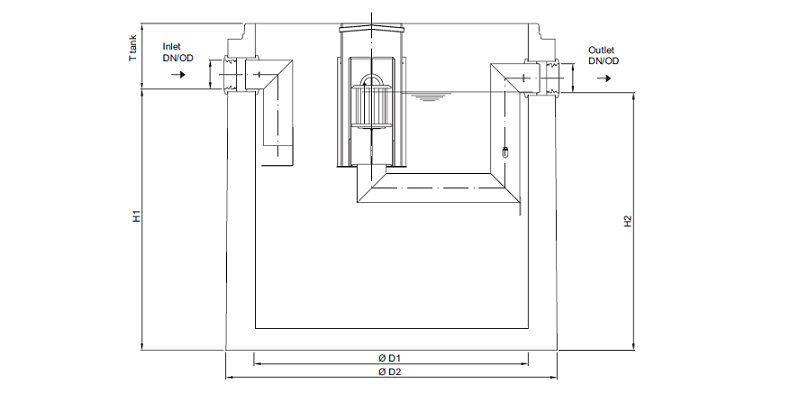

Tabela 2 - dimenzije separatora
Protok NS | Art.br. premazani | Art.br. nepremazani | H1 (mm) | H2 (mm) | D1 (mm) | D2 (mm) | T tank (mm) | Artikal br. Poklopac 1 | Artikal br. Polopac2 | T max (mm) |
---|---|---|---|---|---|---|---|---|---|---|
NS3 | 626368 | 626328 | 920 | 900 | 1240 | 1000 | 380 | - | 626850 | 3380 |
NS3 | 626369 | 626329 | 1210 | 1190 | 1240 | 1000 | 290 | - | 626850 | 3290 |
NS6 | 626370 | 626330 | 1370 | 1350 | 1240 | 1000 | 380 | - | 626850 | 3380 |
NS6 | 626371 | 626331 | 1520 | 1500 | 1440 | 1200 | 380 | 626851 | 626852 | 3380 |
NS10 | 626372 | 626332 | 1520 | 1500 | 1440 | 1200 | 380 | 626851 | 626852 | 3380 |
NS10 | 626373 | 626333 | 1720 | 1700 | 1740 | 1500 | 380 | 626853 | 626854 | 3380 |
NS15 | 626374 | 626334 | 1600 | 1580 | 1740 | 1500 | 500 | 626853 | 626854 | 3500 |
NS20 | 626375 | 626335 | 1980 | 1960 | 1740 | 1500 | 420 | 626853 | 626854 | 3420 |
NS30 | 626376 | 626336 | 1610 | 1590 | 2540 | 2300 | 490 | 626855 | 626856 | 3490 |
NS40 | 626377 | 626337 | 2010 | 1990 | 2540 | 2300 | 490 | - | 626858 | 3490 |
NS50 | 626378 | 626338 | 2160 | 2140 | 2540 | 2300 | 440 | - | 626858 | 3490 |

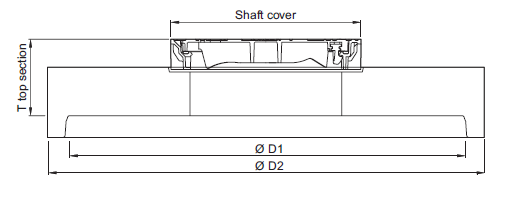

Tabela 3 - poklopac 1
T top section | D1 (mm) | D2(mm) | Poklopac | Težina (kg) | Artikal broj |
---|---|---|---|---|---|
335 | 1000 | 1240 | 1x∅600 | 715 | 626850 |
335 | 1200 | 1440 | 1x∅600 | 955 | 626851 |
335 | 1500 | 1740 | 1x∅600 | 1115 | 626853 |
335 | 2300 | 2540 | 1x∅600 | 2635 | 626855 |
335 | 2300 | 2540 | 1x∅800 | 2713 | 626858 |

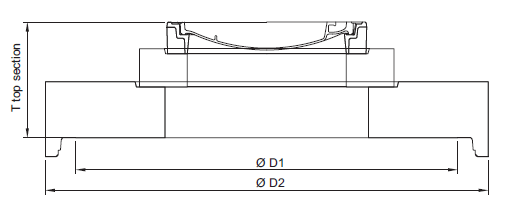

Tabela 4 - poklopac 2
T top section | D1 (mm) | D2 (mm) | Poklopac | Težina (kg) | Artikal broj |
---|---|---|---|---|---|
475 | 1200 | 1440 | 1x∅600 | 955 | 626852 |
475 | 1500 | 1740 | 1x∅600 | 1115 | 626854 |
475 | 2300 | 2540 | 1x∅600 | 2635 | 626586 |

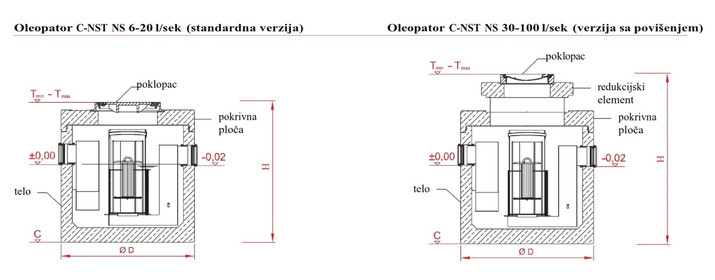

Tabela 1 - separatori
PROTOK NS (l/s) | 65 | 80 | 100 |
---|---|---|---|
Korisna zapremina taložnika (l) | 0 | 0 | 0 |
Ukupna zapremina (l) | 4600 | 6690 | 7370 |
Max. izdvojenog ulja (l) | 1674 | 2447 | 2216 |
Uliv / izliv DN | 300 | 400 | 400 |
Prečnik poklopca D400 (mm) | 1x800 + 2x600 | 2x800 + 1x600 | 1x800 + 2x600 |
T min (mm) | 990 | 1035 | 1005 |
T max (mm) | 5610 | 5630 | 5670 |
D (mm) | 2450 | 2540 | 2450 |
C (mm) | 1430 | 1800 | 2160 |
H (mm) standardna izrada | 2420 | 2835 | 3165 |
Ukupna masa (kg) | 9230 | 9843 | 10967 |
Masa najtežeg elementa (kg) | 6462 | 6722 | 8199 |
Artikal br. donjeg elementa | 722308 | 626379 | 722310 |
Artikal br. pokloca - standard | 728027 | 626860 | 728027 |
Artikal br. pokloca - povišeni | 728214 | / | 728214 |
